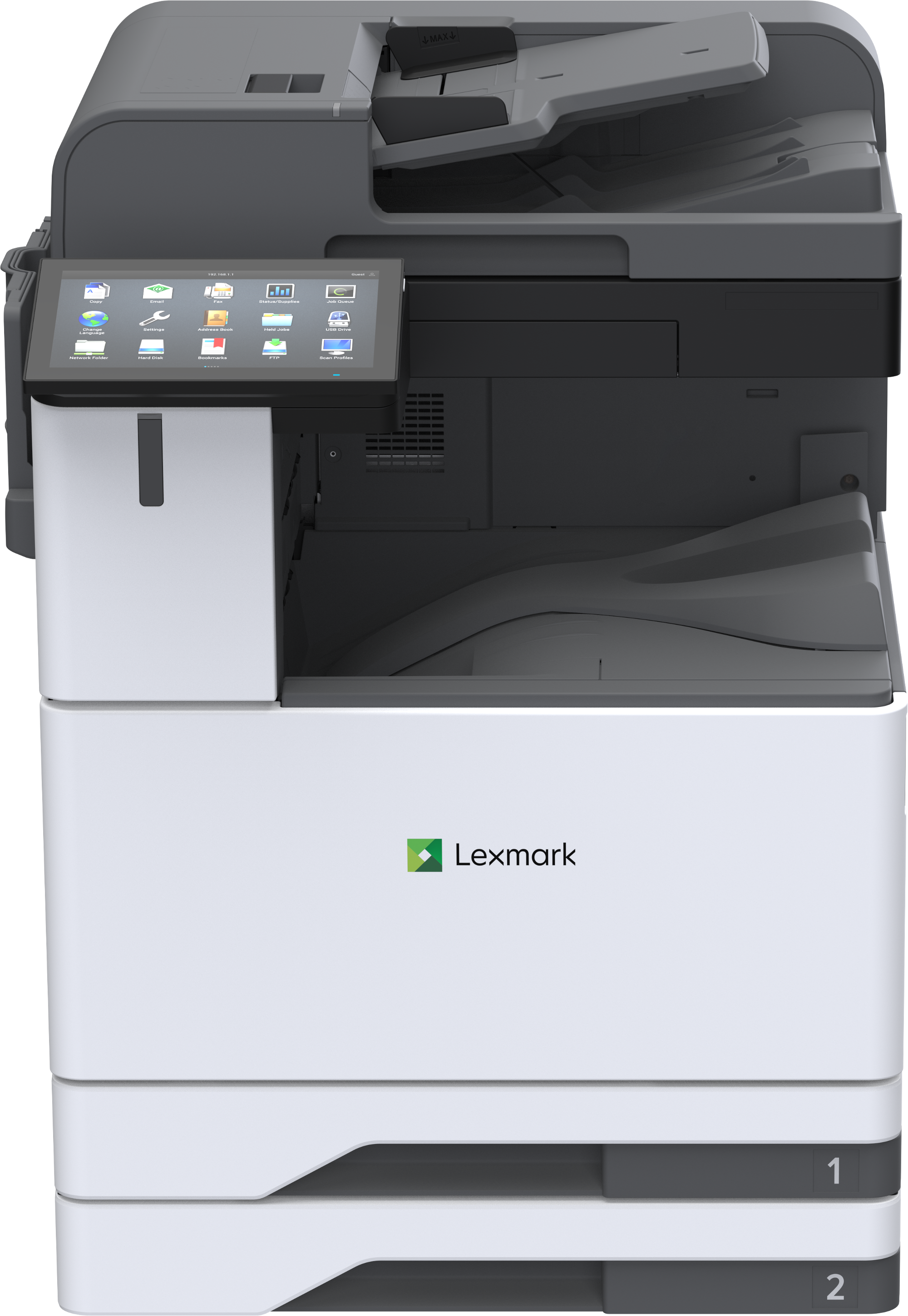

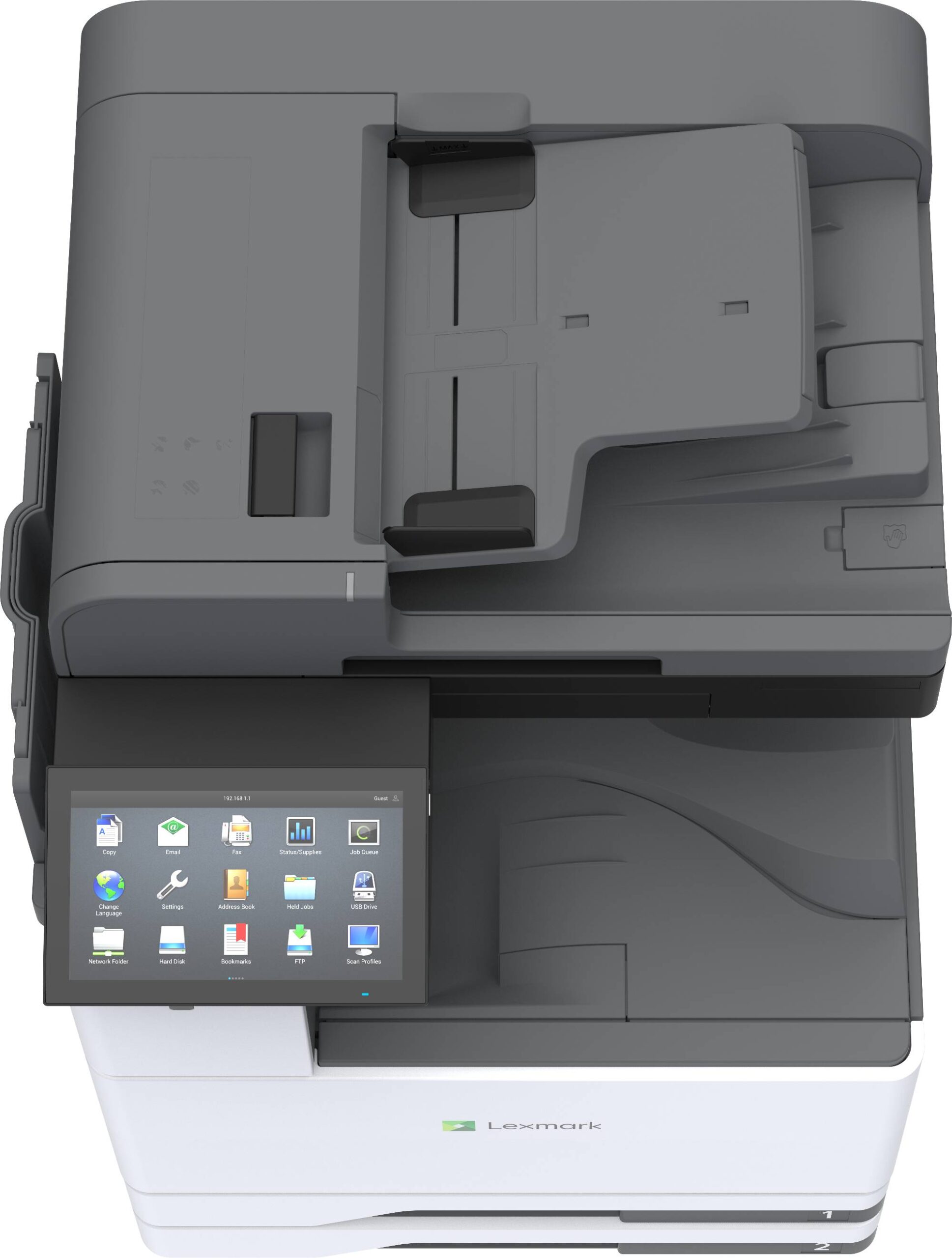

Lexmark XC9455 A3 Colour Multifunction
The Lexmark XC9455 large-format color multifunction is designed for security, versatility and performance for large workgroups at speeds up to 55 pages per minute*.
Loaded with standard features, this model includes a 10-inch (25 cm) touchscreen, single-pass two-sided scanning with ultrasonic multifeed detection, Optical Character Recognition (OCR), and analog faxing.

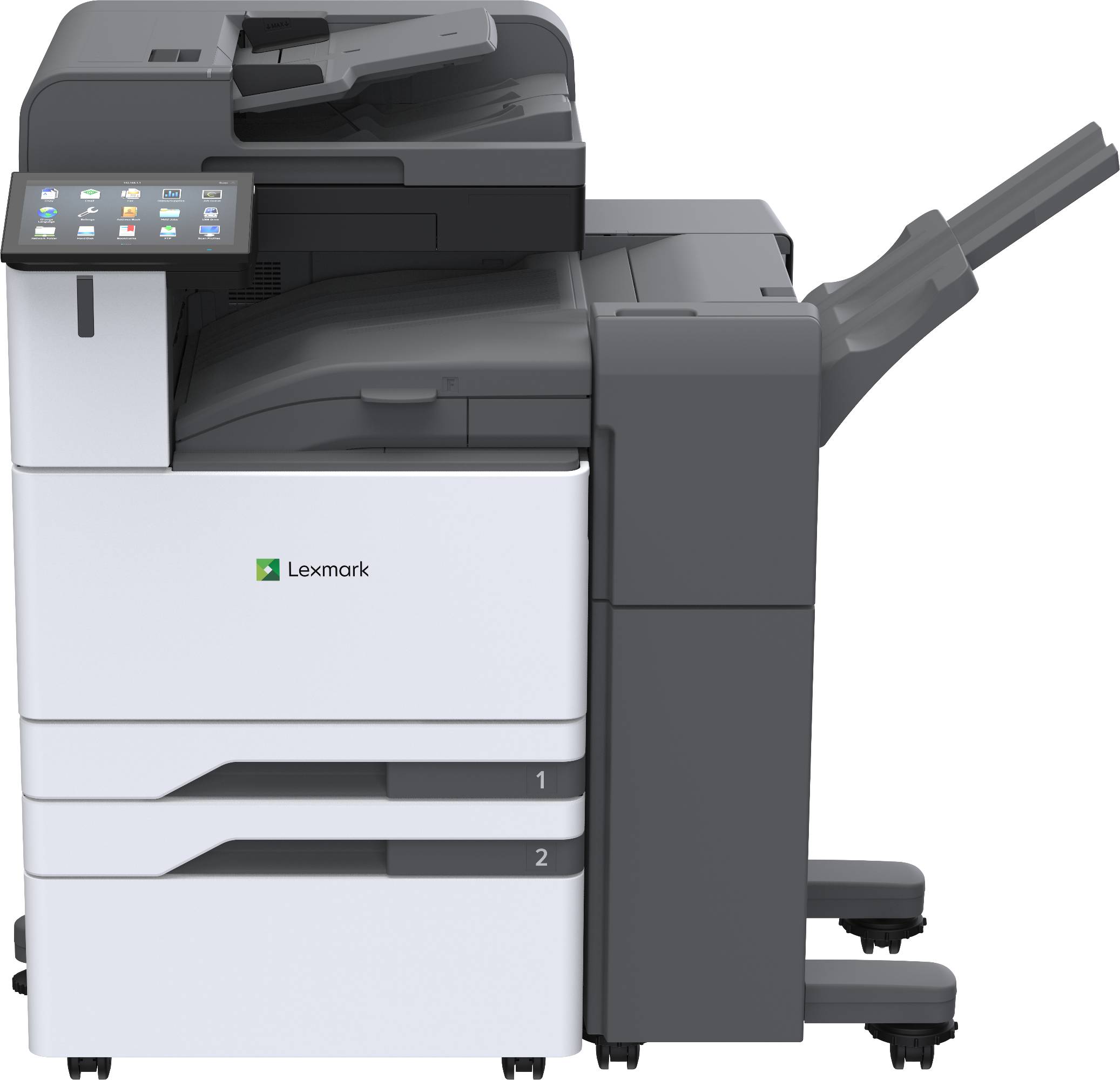

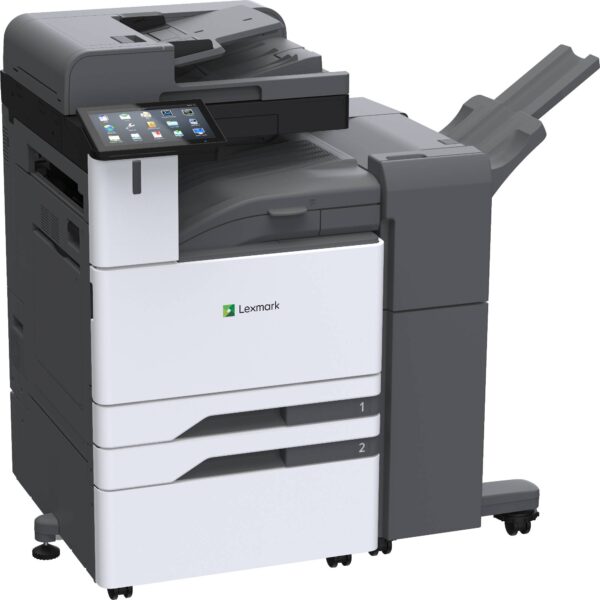

There are several finishing options: staple finisher, staple hole punch finisher, booklet finisher or Lexmark’s first trifold/Z-fold finisher.
Built-in workflow solutions, like Scan Center for simple document routing, plus software alliance solutions provide a variety of capture and printing applications to extend your business processes to the device.
- Lexmark | Secure By Design
- General
- Paper Handling
- Printing
- Scanning
- Faxing
- Hardware
- Connectivity
- Electrical & Operation
- How to Videos
- Printer Driver
Lexmark | Secure By Design
General
Part no. 32D0714
Print Technology
Colour Laser
Function
Colour Copying
Colour Faxing
Colour Printing
Colour Scanning
Colour Network Scanning
Trusted Platform Module (TPM)1
Workgroup Size
Large Workgroup
Display
Lexmark e-Task 10-inch (25 cm) class colour touch screen
Media Sizes Supported
A6, Oficio, 7 3/4 Envelope, JIS-B4, 9 Envelope, B5, JIS-B5, A3, Ledger, A4, Legal, SRA3, A5, Hagaki Card, Letter, B5 Envelope, C4 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope
Included Paper Handling
100-Sheet Multipurpose Feeder, 2 x 520-Sheet Tray, 400-Sheet Output Bin
Standard Ports
Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot
Size (mm – H x W x D)
880 x 620 x 754 mm
Weight
105 kg
Packaged Size (mm – H x W x D)
1100 x 751 x 849 mm
Packaged Weight, kg
124.4 kg
Paper Handling
Media Types Supported
Labels, Card Stock, Plain Paper, Envelopes, Glossy paper, Refer to the Paper & Specialty Media Guide
Finishing Option
Yes
Number of Paper Inputs
Standard: 3
Maximum: 6
Paper Input Capacity
Standard: 1140 pages 75 gsm bond
Maximum: 5140 pages 75 gsm bond
1140 pages 75 gsm bond
Paper Output Capacity
Up to:
Standard: 400 pages 75 gsm bond
Maximum: 2000 pages 75 gsm bond
Paper Weight Range Supported
gsm:
52 – 300 gsm (Standard Tray)
52 – 300 gsm (Multipurpose Feeder)
Finishing Functions
Offset stacking, Stapling, Hole punching, Booklet fold and saddle stapling
Optional Paper Handling
Booklet staple hole punch finisher, Inline Stapler, Dual Catch Bin, Envelope Tray, 2 x 520-Sheet Tray/Caster, Caster spacer, Tri-fold/Z-fold booklet finisher, Staple Punch Finisher, Work table, 2000-Sheet Tray, 2000-Sheet Tandem Tray/Caster
Recommended Monthly Page Volume
7,000 – 50,000 pages3
Maximum Monthly Duty Cycle
Up to:
270 000 pages per month4
A3
Yes
Printing
Print Speed
Up to:
Black: 55 ppm2 (A4)
Colour: 55 ppm2 (A4)
Print Speed Duplex
Up to:
Black: 55 spm2 (A4)
Colour: 55 spm2 (A4)
Time to First Page
as fast as:
Black: 4.9 seconds
Colour: 4.9 seconds
Print Resolution
Black: 1200 x 1200 dpi, 2400 IQ (2400 x 600 dpi)
Colour: 1200 x 1200 dpi, 2400 IQ (2400 x 600 dpi)
Duplex
2-sided:
Integrated Duplex
Printable Area
metric: 4.2 mm of the top, bottom, right and left edges (within)
Scanning
Scanner Type / ADF
Flatbed scanner with automatic document feeder
Scan
DADF (single pass Duplex)
Scan Area
mm:
297 x 432 mm (Maximum)
A4/Ltr Simplex Scan Speed / Scan Speed (A4/Ltr)
Up to:
Black: 73.5/72 sides per minute
Colour): 73.5/72 sides per minute
A4/Ltr Duplex Scan Speed / Duplex Scan Speed (A4/Ltr)
Up to:
Black: 146/144 sides per minute
Colour): 146/144 sides per minute
Scan Resolution / Optical Scanning Resolution
Enhanced: 600 x 600 dpi
Optical: 300 x 600
300 x 600 dpi
Scan File Formats
Send as:
TIFF, Archival PDF (A-1a, A-1b), Secure PDF, PDF, JPEG, JPG, Searchable PDF
Scan Destinations
e-mail, USB or Network connected computer, USB Flash drive, FTP
ADF
130-Sheet Automatic Document Feeder
ADF Paper Input Capacity / ADF Paper Output Capacity
Up to: 130 pages 75 gsm bond
Up to: 130 pages 75 gsm bond
Faxing
Modem Speed
ITU T.30, V.34 Half-Duplex, 33.6 Kbps
Fax Transmission Speed
< 3 seconds per page
Hardware
Processor Speed
Quad Core 1.2 GHz
Memory
Standard: 4096 MB
Maximum: 4096 MB
Hard Disk
Intelligent Storage Drive included; Magnetic Hard Disk available
Printer Languages
Standard:
PCL 5, PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Fonts and Symbol Sets
2 PCL 5/6 bitmap fonts, 158 scalable PostScript fonts, For more information, refer to the Technical Reference., 89 scalable PCL 5/6 fonts, 5 PPDS bitmap fonts, 39 scalable PPDS fonts
Touch Screen Display
Yes
Connectivity
Direct USB
Yes
Ethernet Network
Yes
Network Protocol Support
IPSEC w/ IPv4, IPSEC w/ IPv6, IPv6, IPv4, ICMP, TCP, IGMP, UDP
Network Printing Methods
Pull Printing, Microsoft Web Services WSD, Enhanced IP (Port 9400), IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)
Network Management Protocols
DHCP, APIPA (AutoIP), mDNS, BOOTP, WINS, DDNS, DNS, ARP
Network Security
SSL Cipher Configuration, SNMPv3, Certificate Management, TCP Restricted Server List, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown
Optional Local Ports
External RS-232C serial
Optional Network Ports
MarkNet N8230 Fiber Ethernet Print Server, Marknet N8372 WiFi Option
Electrical & Operation
ENERGY STAR
Yes
ENERGY STAR Typical Electricity Consumption
TEC:
0.85 kilowatt-hours per week
Noise Level
Operating:
29 dBA (Idle)
49 dBA (Print)
57 dBA (Copy)
57 dBA (Scan)
Duplex Print Noise Level
Operating:
51 dBA
Average Power
0.1 watts (Hibernate Mode)
1.2 watts (Sleep Mode)
88 watts (Ready Mode)
790 watts (Printing)
Specified Operating Environment
Humidity: 8 to 80% Relative Humidity
Altitude: 0 – 2500 metres
Temperature: 10 to 32°C (50 to 90°F)
Product Certifications
ENERGY STAR, ICES-003 Class A, BSMI Class A, VCCI Class A, FCC Class A, NOM-032, UL, cUL, NOM, US FDA/CDRH, IEC 60825-1, CB Report, ISO-532B, CE (EU) DoC, EFTA (CE), KC logo, CCC, C-tick DoC, EuP, CECP, CEL, EC 1275/2008, ECMA-370, TED, SII, TER, SABS, UL-AR, GS Mark, Green Dot, ISO-9296, COC, CCD-035 EcoLogo, Green Mark, EPEAT, China Green Product (CGP), Mopria Certified
UNSPSC Code
43212110
