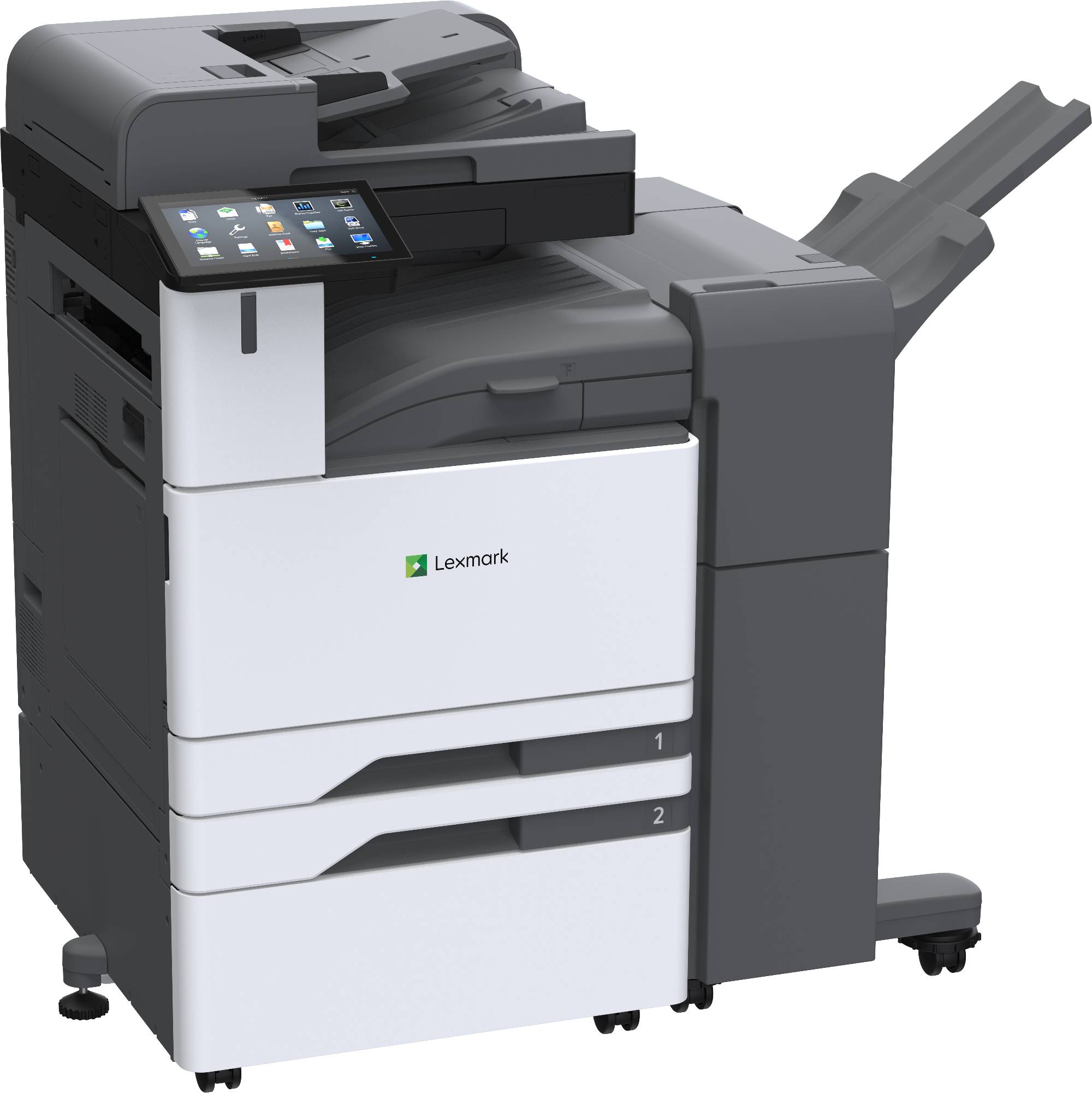

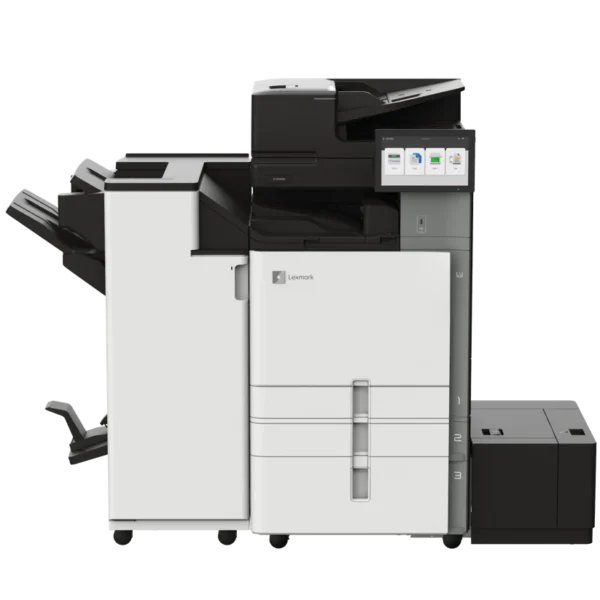

Lexmark XC9635 A3 Colour Multifunction Device
With the new XC9635 colour A3 multifunction printer, you get reassuring versatility, exceptional sustainability and surprising simplicity from such sophisticated technology. Boost your productivity with vivid prints – up to 35 pages per minute*. Intuitively navigate the 25 cm colour touchscreen, and save time with single-pass two-sided scanning. Effortlessly create everything your business requires and custom configure your multifunction printer with interchangeable options tailored to your needs. And as with all Lexmark devices, you can be confident that they are reliable, sustainable, durable, cost-saving and Secure by Design.
Great product for Hunter Valley businesses looking for a robust A3 Colour MFD that is built to last – a minimum of 7 years. This model is perfect for workgroups in the Finance, Real Estate, Engineering and Construction, Mining, Retail and Education sectors.
Tech Specs
Part no. 20L9066
Print Technology
Colour Laser
Function
Colour Copying
Colour Printing
Colour Scanning
Trusted Platform Module (TPM)1
Workgroup Size
Large Workgroup
Display
Lexmark e-Task 10.1-inch (25.6 cm) colour touch screen
Media Sizes Supported
A6, Oficio, 304.8 x 483 mm, 7 3/4 Envelope, JIS-B4, 9 Envelope, JIS-B5, A3, Ledger, A4, Legal, SRA3, A5, Hagaki Card, Letter, B5 Envelope, C4 Envelope, Statement, C5 Envelope, Executive, DL Envelope, Folio, 10 Envelope
Included Paper Handling
500-Sheet Output Bin, 550-Sheet Tray, 150-Sheet Multipurpose Feeder
Standard Ports
Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), 802.11a/b/g/n/ac + Apple iBeacon, USB 2.0 Specification Hi-Speed Certified (Type B)
Size (mm – H x W x D)
858 x 592 x 660 mm
Weight
87.6 kg
Packaged Size (mm – H x W x D)
1080 x 740 x 785 mm
Packaged Weight, kg
108.0 kg
Printing
Print Speed
Up to:
Black: 35 ppm2 (A4)
Colour: 35 ppm2 (A4)
Print Speed Duplex
Up to:
Black: 35 spm2 (A4)
Colour: 35 spm2 (A4)
Time to First Page
as fast as:
Black: 7.1 seconds
Colour: 8.2 seconds
Print Resolution
Black: 1200 x 1200 dpi, 4800 Colour Quality
Colour: 4800 Colour Quality, 1200 x 1200 dpi
Duplex
2-sided:
Integrated Duplex
Printable Area
metric: 4 mm of the top, bottom, right and left edges (within)
Scanning
Scanner Type / ADF Scan
Flatbed scanner with automatic document feeder
DADF (single pass Duplex)
Scan Area
mm:
297 x 432 mm (Maximum)
A4/Ltr Simplex Scan Speed / Scan Speed (A4/Ltr
Up to:
Black: 120/120 sides per minute
Colour): 120/120 sides per minute
A4/Ltr Duplex Scan Speed / Duplex Scan Speed (A4/Ltr
Up to:
Black: 240/240 sides per minute
Colour): 240/240 sides per minute
Scan Resolution / Optical Scanning Resolution
Enhanced: 600 x 600 dpi
Optical: 300 x 300 dpi
300 X 300 dpi
Scan File Formats
Send as:
DOCX, RTF, TXT, TIFF, Archival PDF (A-1a, A-1b), Secure PDF, PDF, JPEG, JPG, Searchable PDF
Scan Destinations
e-mail, USB or Network connected computer, USB Flash drive, FTP
ADF
300-Sheet Automatic Document Feeder
ADF Paper Input Capacity / ADF Paper Output Capacity
Up to: 300 pages 75 gsm bond
Up to: 300 pages 75 gsm bond
Paper Handling
Media Types Supported
Vinyl Labels, Labels, Card Stock, Plain Paper, Envelopes, Glossy paper, Refer to the Paper & Specialty Media Guide
Finishing Option
Yes
Number of Paper Inputs
Standard: 2
Maximum: 6
Paper Input Capacity
Standard: 700 pages 75 gsm bond
Maximum: 4750 pages 75 gsm bond
700 pages 75 gsm bond
Paper Output Capacity
Up to:
Standard: 500 pages 75 gsm bond
Maximum: 2650 pages 75 gsm bond
Paper Weight Range Supported
gsm:
60 – 300 gsm (Standard Tray)
60 – 300 gsm (Multipurpose Feeder)
Finishing Functions
Offset stacking, Stapling, Hole punching
Optional Paper Handling
2,250-Sheet Booklet Staple Hole Punch Finisher, 500-Sheet Staple Offset Finisher, Folding Paper Transport Unit, 1,250-Sheet Staple Hole Punch Finisher, Offset Stacker, 1,500-Sheet High-Capacity Tray, Paper Transport Unit, 2000-Sheet Tandem Tray, Cabinet, 2 x 550-Sheet Tray, 550-Sheet Tray
Recommended Monthly Page Volume
4,000 – 20,000 pages3
Maximum Monthly Duty Cycle
Up to:
150 000 pages per month4
A3
Yes
Cartridges and Imaging
Laser Cartridge Yields
up to:
46,9005-page Colour (CMY) Cartridges
47,7005-page Black Cartridge
Imaging Unit Estimated Yield
Up to:
225,000 (black) and 250,000 (colour) pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage
Replacement Cartridges:
Product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for more details.
Hardware
Processor Speed
Quad Core, 1.2 GHz
Memory
Standard: 4 GB
Maximum: 4 GB
Hard Disk
Intelligent Storage Drive included; Magnetic Hard Disk available
Printer Languages
Standard:
PCLm, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PCL 5 Emulation, PostScript 3 Emulation, PDF 1.7 emulation, Direct Image
Fonts and Symbol Sets
2 PCL 5/6 bitmap fonts, 94 scalable PCL 5/6 fonts, 163 scalable PostScript fonts, 5 PPDS bitmap fonts, 39 scalable PPDS fonts
Touch Screen Display
Yes
Connectivity
Direct USB
Yes
Ethernet Network
Yes
Wireless
Yes
Network Protocol Support
IPSEC w/ IPv4, IPSEC w/ IPv6, IPv6, IPv4, ICMP, TCP, IGMP, UDP
Network Printing Methods
FTP, LPR, Direct IP (Port 9100), Pull Printing, Thin Print, Microsoft Web Services WSD, Enhanced IP (Port 9400), IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)
Network Management Protocols
DHCP, APIPA (AutoIP), mDNS, BOOTP, WINS, DDNS, DNS, ARP
Network Security
SSL Cipher Configuration, SNMPv3, Certificate Management, TCP Restricted Server List, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, IPSEC Support (IPv4/IPv6), TCP/UDP Port Access Control, Security Port Lockdown
Optional Local Ports
Internal 1284-B Bidirectional Parallel, Internal RS-232C serial
Optional Network Ports
MarkNet N8230 Fiber Ethernet Print Server
Wireless Network
WPA™ and WPA2™ – Personal, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS, WPA2™ – Personal
